Boeing
Our Fleet / Aircraft 01

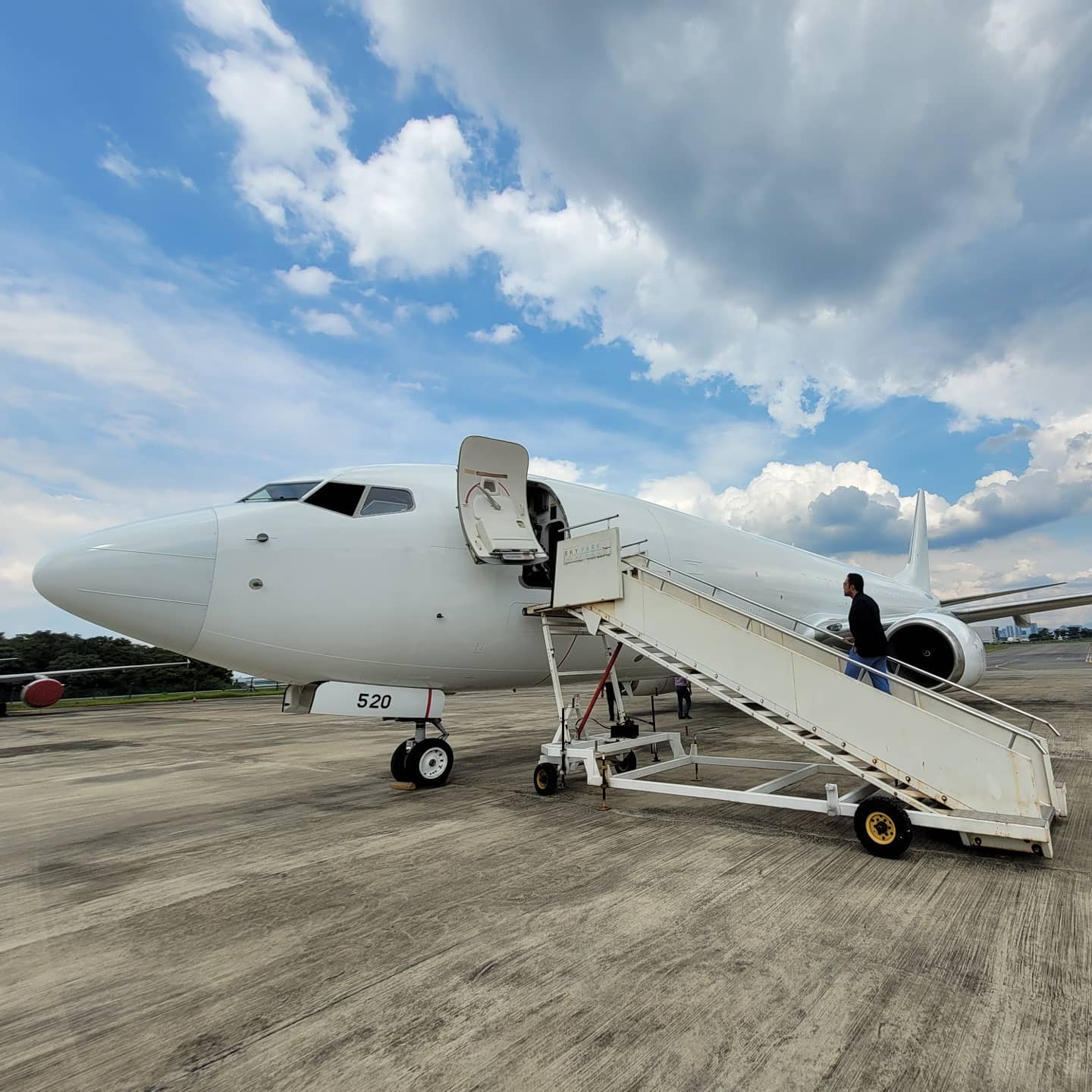

Boeing
737-800BCF
A proven narrow-body freighter configured for dependable regional cargo operations across Asia and beyond.
Max structural payload23,950 kg52,800 lb
Main deck volume141.5 m³4,997 ft³
Range at max payload1,995 nmi3,695 km
Long-range cruiseMach 0.785Approx. 452 KTAS
Technical profile
Aircraft General Specification
Measurements and operating figures are arranged by planning priority for faster cargo assessment.
01
Dimensions
- Length
- 39.5 m 129 ft 6 in
- Wingspan
- 35.79 m 117 ft 5 in · blended winglets
- Height at tail
- 12.5 m 41 ft 2 in
02
Operating Weights
- Maximum takeoff weight · MTOW
- 79,000 kg 174,200 lb
- Maximum landing weight · MLW
- 66,350 kg 146,300 lb
- Maximum zero fuel weight · MZFW
- 62,750 kg 138,300 lb
03
Cargo Capability
- Maximum structural payload
- 23,950 kg 52,800 lb
- Volume limit payload
- 20,768 kg 45,787 lb
- Main deck cargo volume
- 141.5 m³ 4,997 ft³
- Lower hold bulk volume
- 43.7 m³ 1,543 ft³
- Main deck configuration
- 11 standard AAA pallets 88 × 125 in, plus one AEP/AEH half-pallet position
- Main deck cargo door · LH
- 358 × 220 cm Clear opening · 141 × 86.5 in
04
Performance
- Range with maximum payload
- Approx. 1,995 nmi 3,695 km
- Range at volume limit payload
- Approx. 2,570 nmi 4,760 km
- Fuel capacity
- 26,025 litres 6,875 US gal
- Long-range cruise speed
- Mach 0.785 Approx. 452 KTAS at cruise altitude
- Service ceiling
- 41,000 ft
05
Power & Systems
- Engines
- 2 × CFM International CFM56-7B Series turbofans · 24,200–27,300 lbf per engine, variant dependent
- Noise compliance
- ICAO Chapter 4 FAA Stage 4
- Avionics
- 737NG glass cockpit Six LCD displays, dual FMC, EGPWS and TCAS II as standard
